EC fans that are environmentally friendly and energy-saving and operate quietly.
Digitalized control and management
World-leading German craftsmanship
The advantages of the high-efficiency EC fan
Digitalized control and management
World-leading German craftsmanship
-

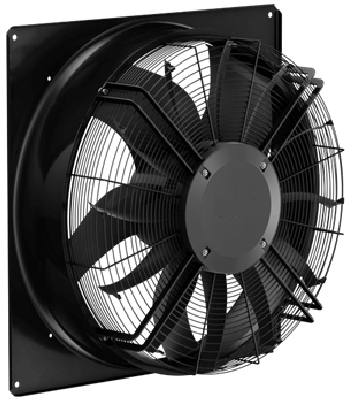

Integrate the high-efficiency fan, motor, and inverter in one to be specially used for the cooling tower EC fan.
-
The high overall unit efficiency (the overall unit consists of a fan, motor, and inverter) is in line with EU Energy Efficiency (ErP 2015).
-
Low vibration and noise; structurally compact, integration of rotating machinery in one.
-
Integrated protection function, phase failure and low voltage protection, motor and inverter over-temperature protection, equipment blocked rotor protection, etc.
-
Equipment is easy to use; plug-and-play; without belts; mechanical alignment not required.
-
Equipment is easy to maintain; monitoring of whole-machine status; peripheral integration with ease.
-
Digital and intelligent control, monitoring of equipment status (instant rotational speed, power consumption, temperature, etc.), ease-of-use smart functions.
| Nominal data | Size |
Nominal voltage range |
Frequency | Speed |
Max. power consumption Max. input current |
Max. input current |
Max. back pressure |
Permissible ambient temperature |
Weight | Dimensions A | Dimensions B | Dimensions C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | mm | VAC | Hz | rpm | W | A | Pa | °C | Kg | mm | mm | mm |
| W3G 910-LV12-36 | 910 | 3~380-480 | 50/60 | 1,070 | 3,250 | 5.0 | -25....+26 | 59 | 1,070 | 352 | 1,010 |

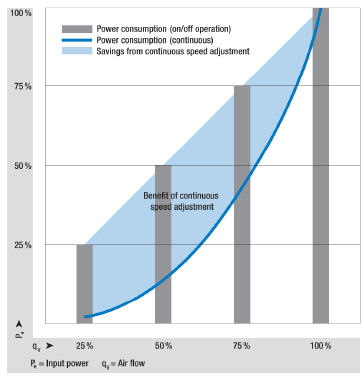

The advantage of continuous speed regulation: low power consumption.
Reduce energy consumption and increase the service life of equipment.
Compared to conventional on/off mode, speed control by load can significantly save energy.
On/off mode: Turn of half of the fans to reach 50% airflow.
Speed regulation mode: Reduce the speed of all the fans by half to reach 50% air flow, substantially decrease power consumption, and significantly increase the service life of equipment.
Compared to conventional on/off mode, speed control by load can significantly save energy.
On/off mode: Turn of half of the fans to reach 50% airflow.
Speed regulation mode: Reduce the speed of all the fans by half to reach 50% air flow, substantially decrease power consumption, and significantly increase the service life of equipment.
Pn~n3
Turn off half of the fans=50% air flow=50% power consumption
Regulate the speed of all the fans to 50%=50% air flow=12.5% power consumption.
Lower noise
Compared to conventional on/off modes, speed regulation by load can significantly reduce noises.
Lp [dB] = 50 x log (n1/n2)
Turn off half of the fans=50% air flow=noise reduction by 3dB(A).
Regulate the speed of all the fans to 50%=50% air flow=noise reduction by 15 dB(A).
